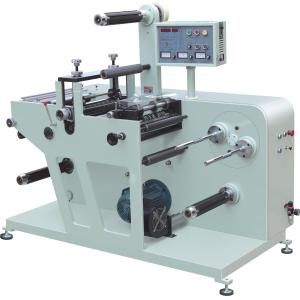

rotary die cutting machine with slitter for blank label/sticker
Functional characteristics:
SR-350Y model die cutting and slitting machine is with rotary die
cutting function is a new design, it equipped with high accurate
rotary die cutting system, this machine is suitable for blank
adhesive label material. Die cutting, slitting can be completed in
one process. It has the function of automatic meter counting,
Automatic stop, web guiding by photoelectric etc functions. This
machine has the characteristic of compact structure,fast speed,high
efficiency,easy operation,accurate slitting and stably running and
so on features.
Features:
1. Rewinder and unwinder all are with magnetic tension controller
2. Air shaft automatic inflate air
3. For rewinder, it is turret type,have 3 rewinders. The rewinder
size can be changed, machine totally with 6 air shafts
Technical parameters:
| model | SR-350Y | SR-450Y |
| Slitting speed | 120m/min | 120m/min |
| Max. Roll Width | 320mm | 420mm |
| Max. Unwinding diameter | 500mm | 500mm |
| Max. rewinding diameter | 500mm | 500mm |
| Accuracy rate | ±0.10mm | ±0.10mm |
| weight | 600kg | 800kg |
| Dimension | 1700*1000*1600mm | 1800*1300*1700mm |
| Magnetic size | 60T-150T | 60T-150T |
Main Parts List:
| NO. | Parts Name | Brand |
| 1 | Transducer | France - Schneider |
| 2 | Epc web guide | China |
| 3 | Main motor | China-shanghai |
| 4 | Buttons | French--Schneider |
| 5 | A.C.Contactor | China |
| 6 | Counter | Germany-LEUZE |

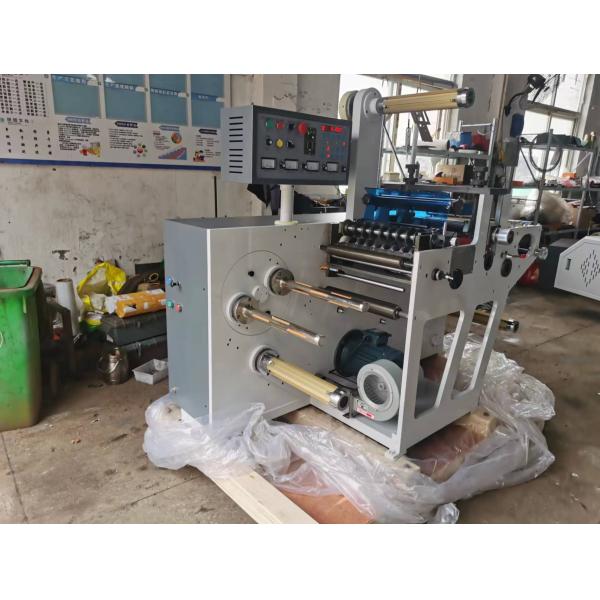

machine detail:
Sample:
Company Details:
Wenzhou Sunrise Macinery Co.,Ltd professionally research and
manufacture label die cutting machine, label slitting machine and
some related series products, we pay attention to talents and the
technical innovation, insist on "technical innovationnational
brand' as development strategy, to make company as the leader in
after printing machinery line. Sincerity, quality,service is our
operation principle, to be braveaggressivepragmaticefficient is our
company spirit. We research and manufacture various of types of
machines, welcome all old and new customers and friends to visit
us!
Packing & Delivery:
FAQ:
1. who are we?
We are based in Zhejiang, China, start from 2013,sell to Domestic
Market(60.00%),Mid East(12.00%),Eastern Asia(5.00%),South
Asia(4.00%),Central America(3.00%),South
America(3.00%),Africa(3.00%),Southeast
Asia(3.00%),Oceania(3.00%),North America(2.00%),Eastern
Europe(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Label Die Cutting Machine,Slitting Machine,Flexo Printing
Machine,Laminating Machine,Rotary Label Die Cutting Machine
4. why should you buy from us not from other suppliers?
Wenzhou Sunrise Macinery Co.,Ltd professionally research and
manufacture label die cutting machine, label slitting machine and
some related series products, we pay attention to talents and the
technical innovation, insist on "technical innovationnational
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
